SPECIFICATIONS
Brand Name: MACHINIST
Chipset: c612
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 256GB
Processor compatibility: Intel Xeon E Series
Processor compatibility: 7th Intel Core i7
With CPU: No
Support Memory Type: DDR4
Number of PCI: 5
Storage Interface Type: SATA
Package: Yes
RAID Supported: no
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 1x RJ45
PCI - E standards: PCI - E 3.0
Socket Type: LGA 2011-3
Special Function: none
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: DESIGN
Usage Scenario: Video Production
Usage Scenario: Industrial Computer
Usage Scenario: 3-D Modeling
Origin: Mainland China
Number of PCIe x 8: 1
Form Factor: CeB
Support USB Type: USB 2.0
Support USB Type: USB 3.0
Number of PCIe x 4: 0
Number of PCIe x 16: 2
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: USB 3.0 Connector
Onboard Connectors & Header: OthersConnectors & Header
Memory channel: Four
Number of SATA Ports: 8
SATA RAID: 0
Quality Certification: ce
Quality Certification: ROHS
Number of PCIe x 1: 2
Certification: RoHS
Certification: CE
Form Factor: E-ATX

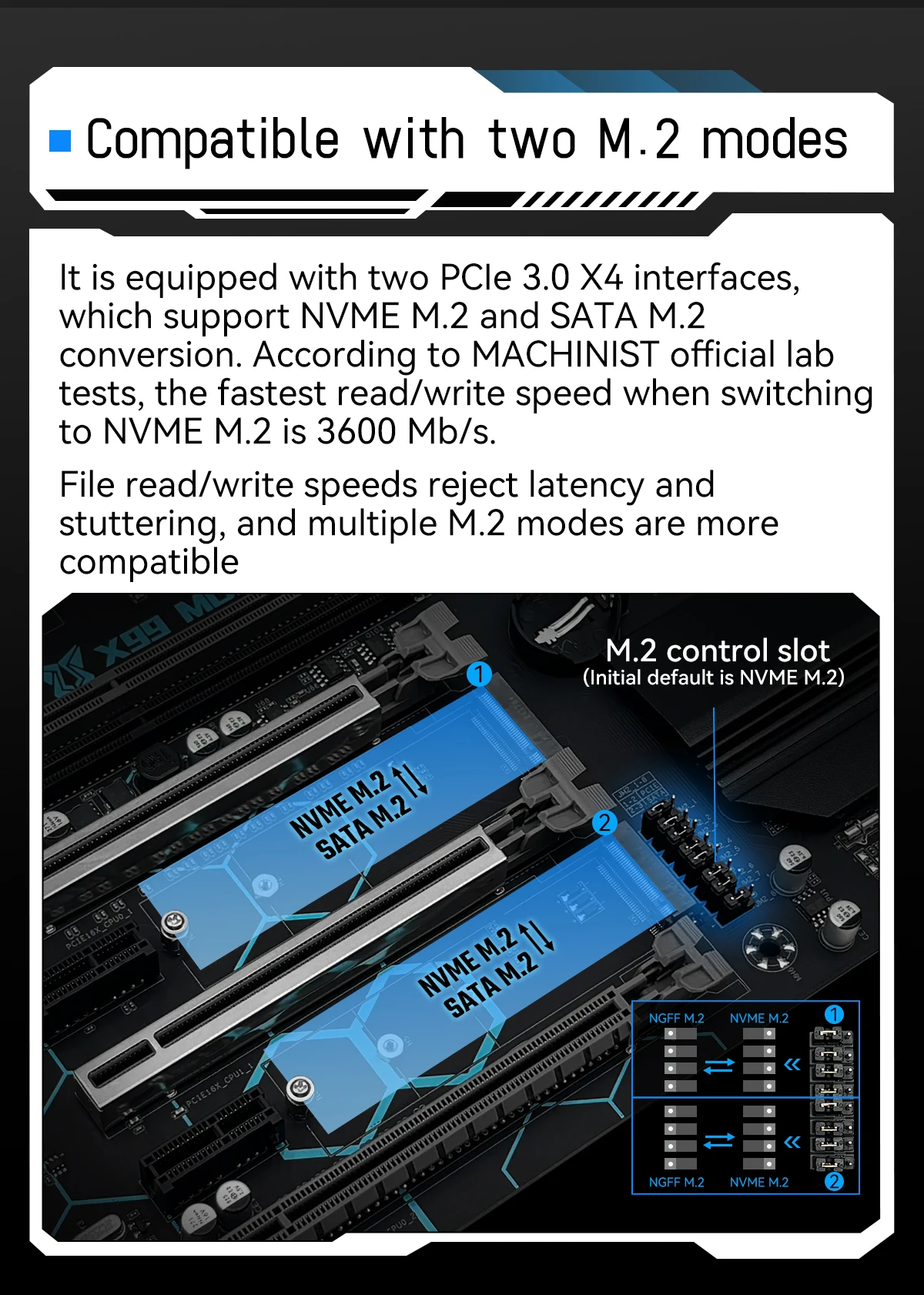

Supports M.2 SSD: 2280
Number of M.2: 2
MACHINIST Official Store Statement
>> What's in the package?

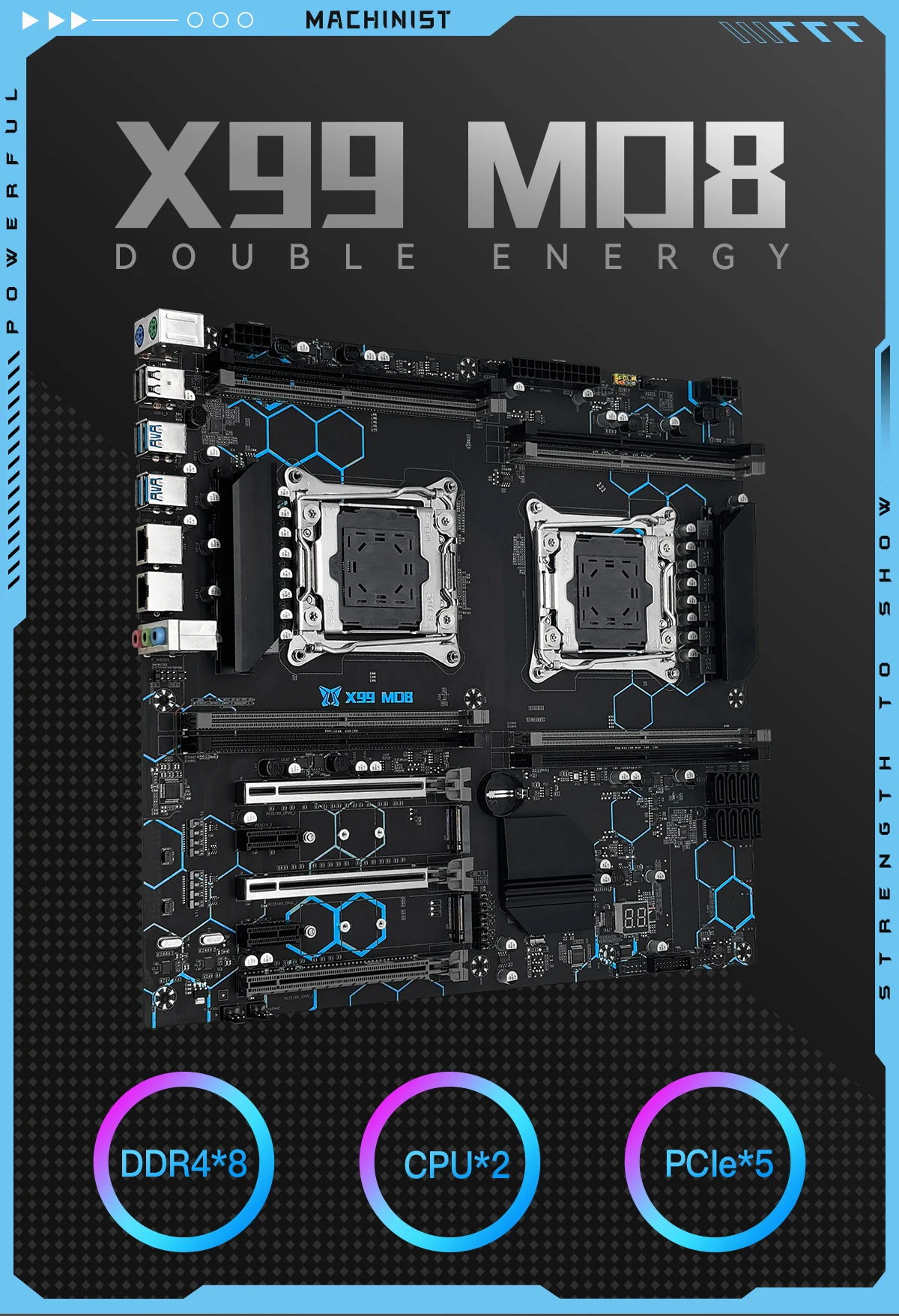

1Main products: MACHINIST X99 MD8 motherboard *1pcs;
2Gift accessories: i/o shield, CPU cooling bracket, sata cable (all are hand-tested and packaged, there may be omissions, please forgive me!);
>For the tariff problem, please make sure you can solve the customs clearance problem by yourself, if you can't solve it, we do not recommend you to buy goods in our store. We are not responsible for customs duties. Thanks for your understanding.
>>Please note: Some processors only support up to DDR4 1866Mhz or 2133MHz memory. This means that when 3200Mhz or 2666Mhz is installed it will only show 1866Mhz and 2133MHz. If you mind, please don't place an order. You can read 3200mhz and 2133MHz on CPU-Z.

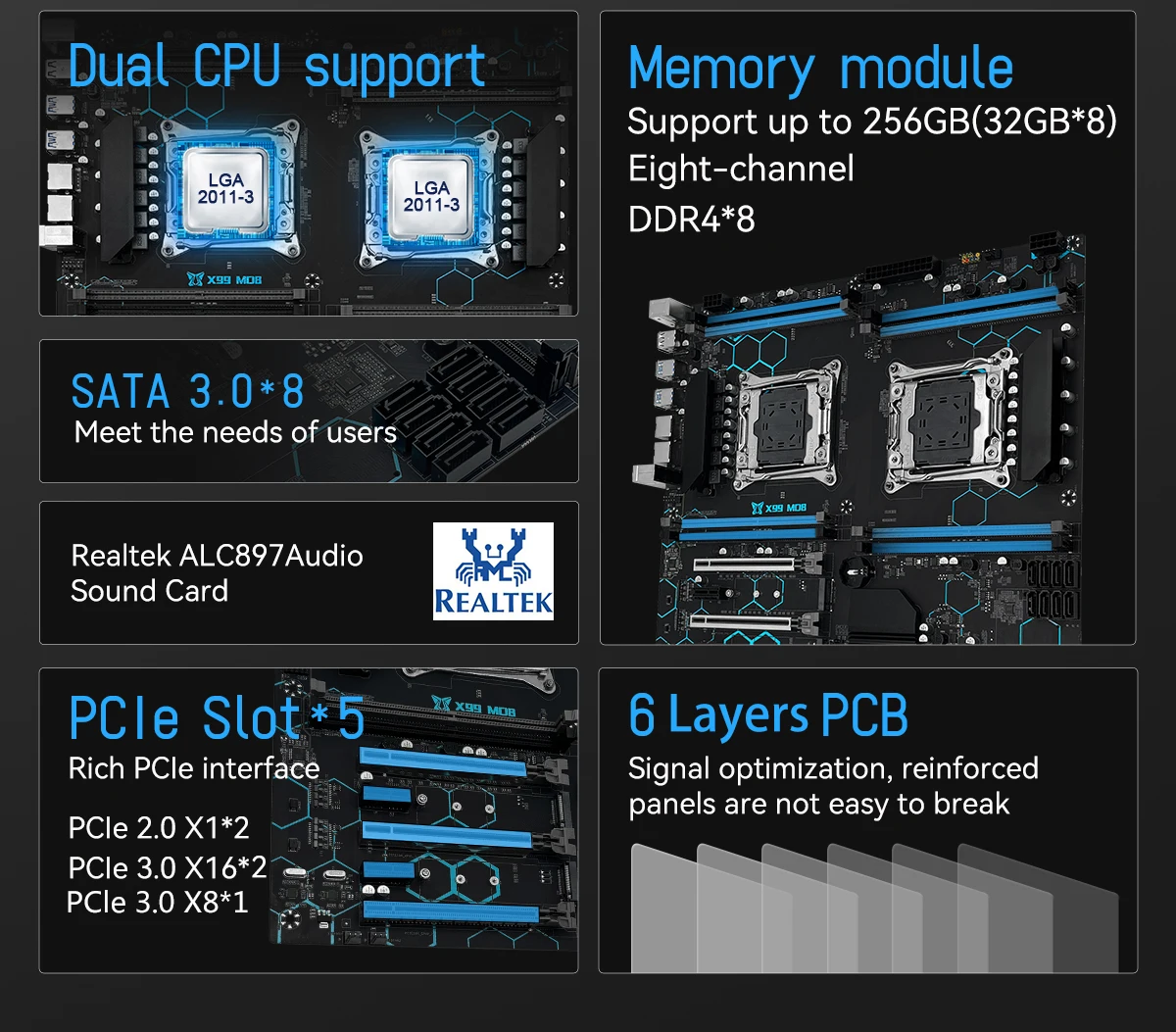

MACHINIST Product Details

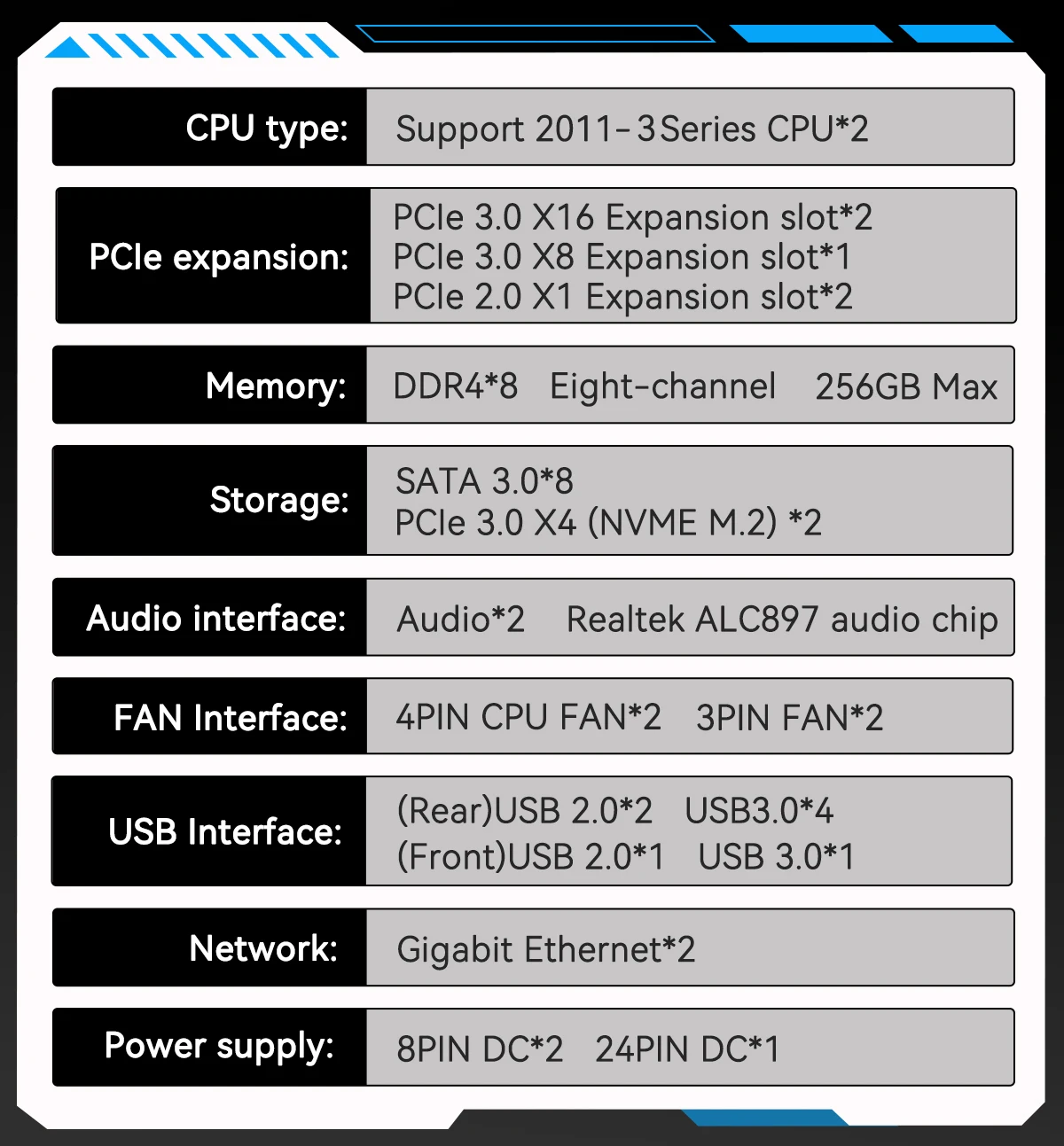

>>Specifications:

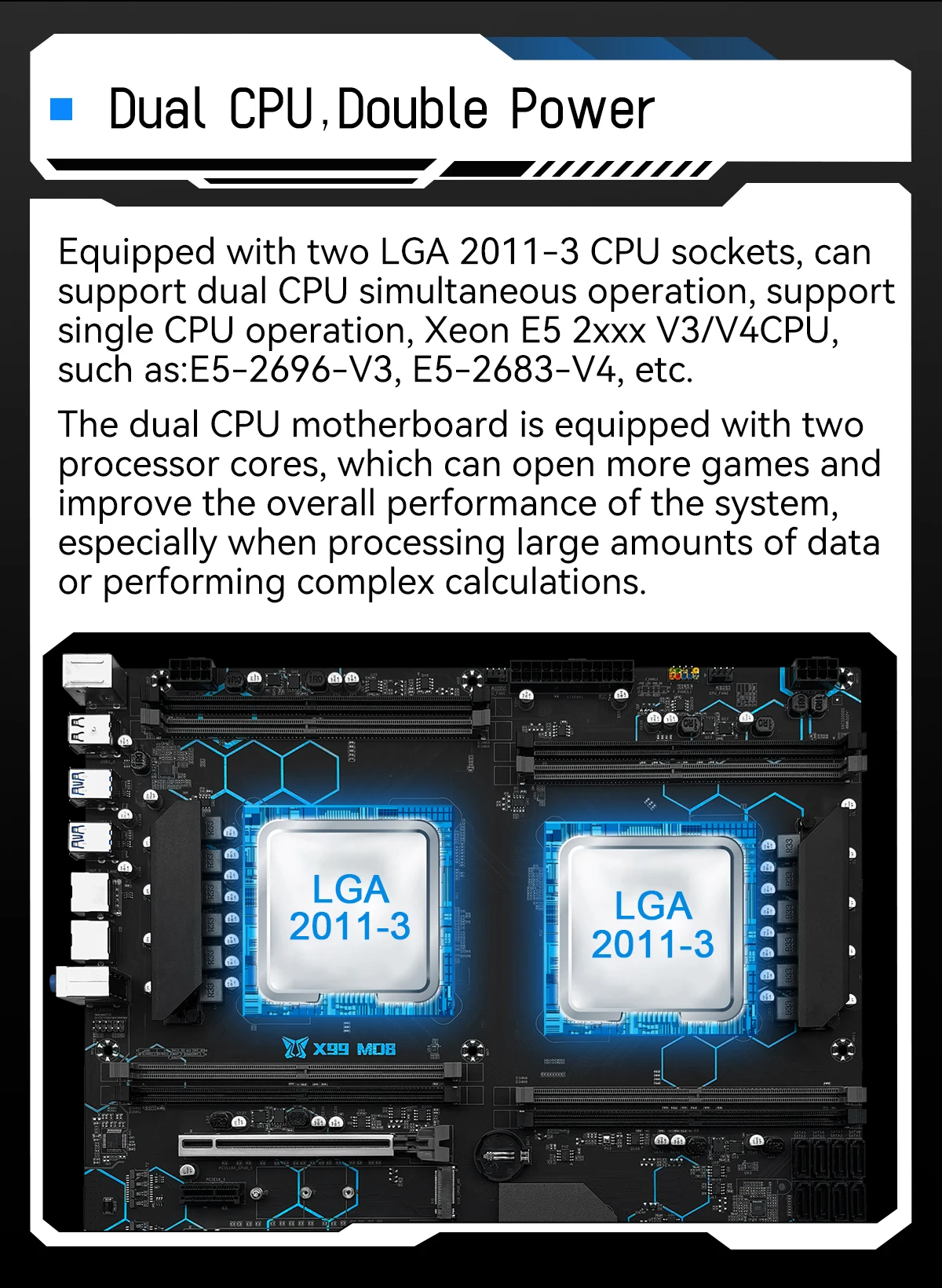

Processor DUAL Intel Xeon E5 LGA2011-3 series processor;
Southbridge C612 Chipset series;
>>memory

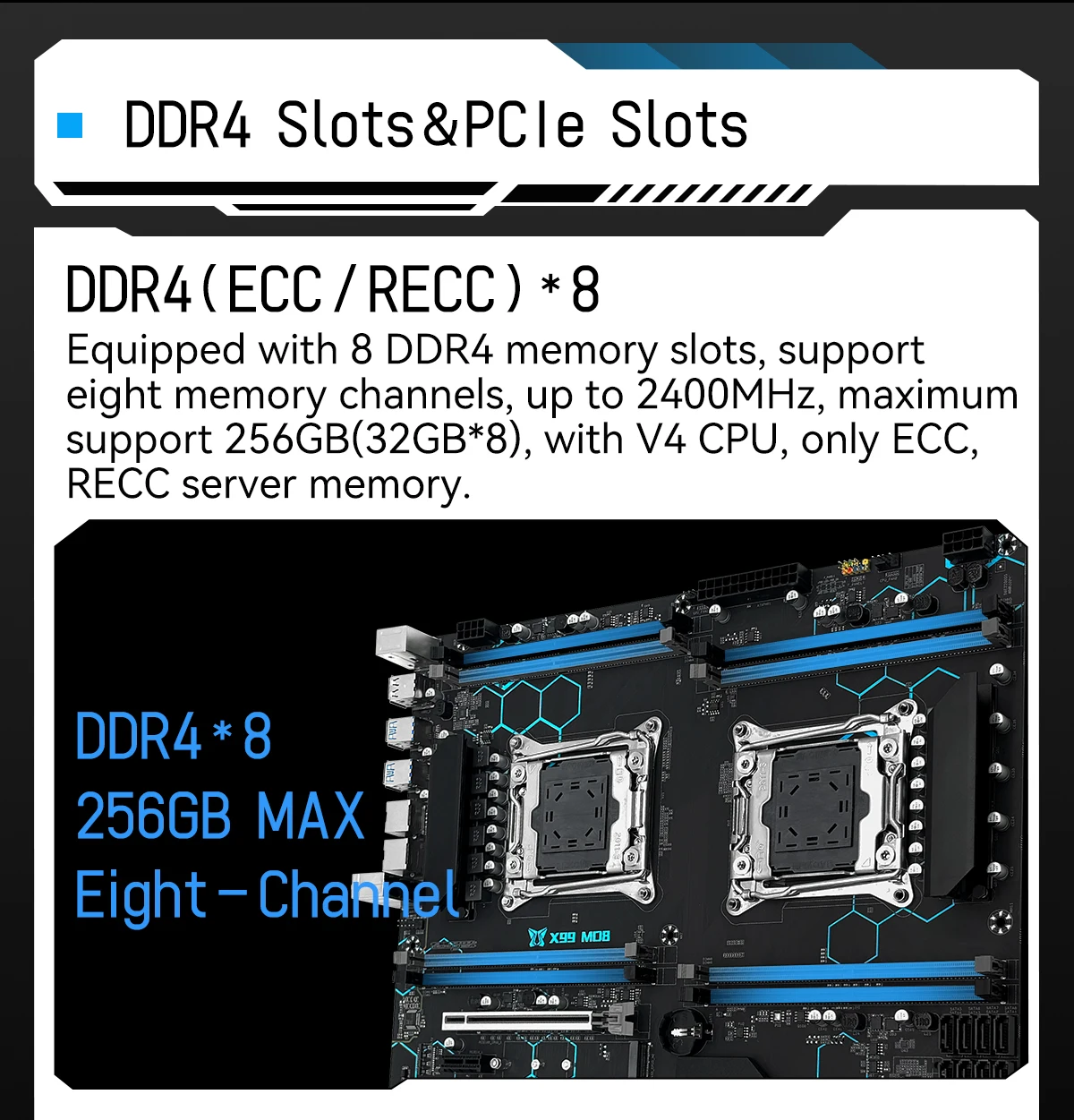

Applicable memory: desktop DDR4, server DDR4 ECC, DDR4 RECC, supports up to 2400MHz frequency (determined by CPU), supports a maximum memory of 32GB * 8=256GB.
Note: When using V4 CPU, only ECC and RECC server memory can be used.
>>Rear I/O
USB interface: 5 USB3.0; 3 USB2.0;
Ethernet: 1 Realtek Gigabit network cards;
Audio: 1 (Mic-in, Line-out, Line-in);
>>Internal connector
USB 2.0: 2 (one FUSB can transfer two USB 2.0 ports);
USB 3.0: 2 (one FUSB can transfer two USB 3.0 ports);
Serial port: 1 2x5Pin;

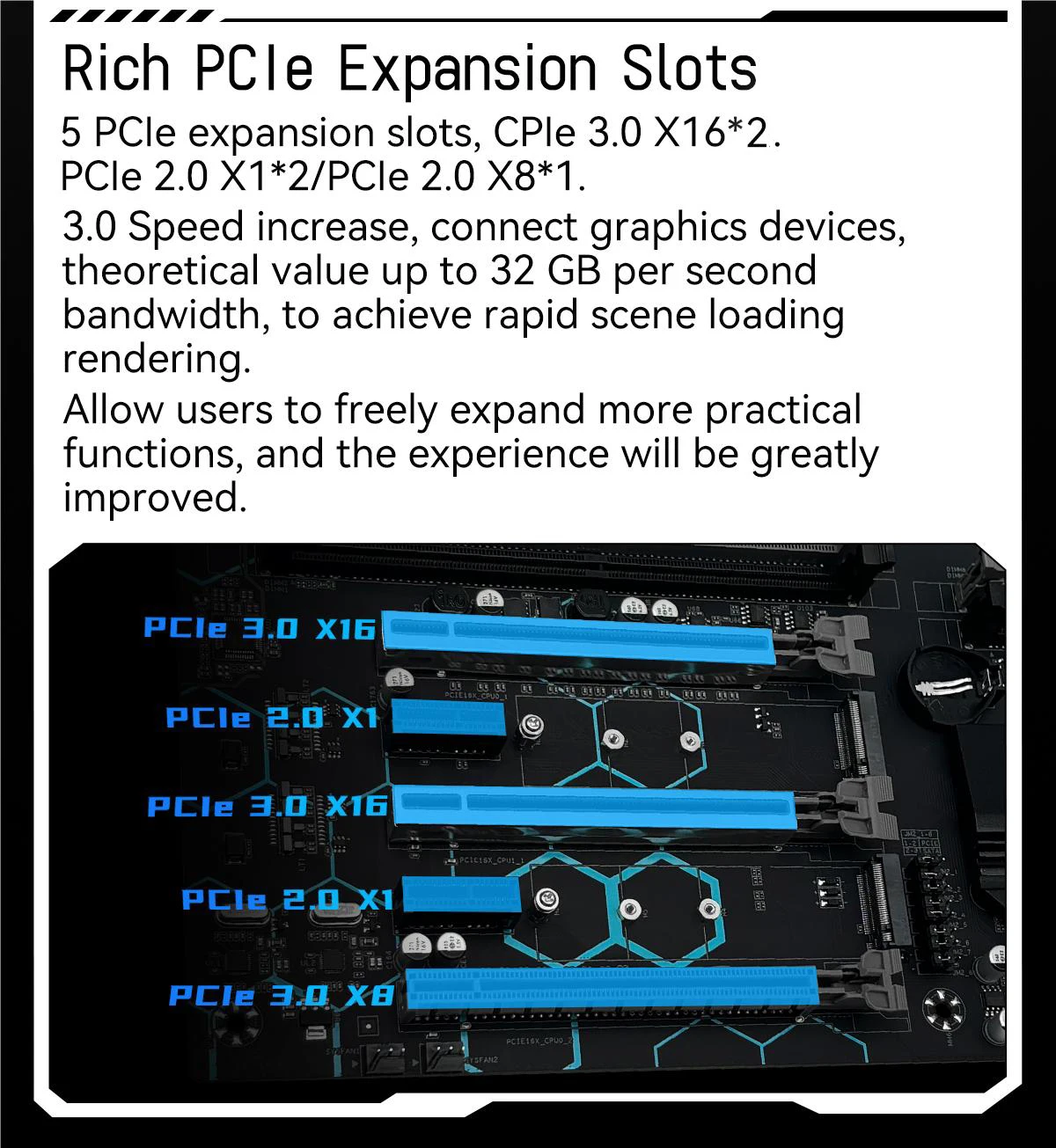

PCIe: 2 PCIe x16,2 PCIex1,1 PCIe 8x.
SATA: 8 SATA ports;
ATXPWR interface: 2 standard 2x4PIN power sockets; 1 standard 2x12PIN power socket;
FAN: 4 1*3PIN SYS_FAN, 2 1*4PIN CPU_FAN;
Audio: 1 2x5Pin;
Physical size Dimensions 330MM * 320MM
Note:
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
(5) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
