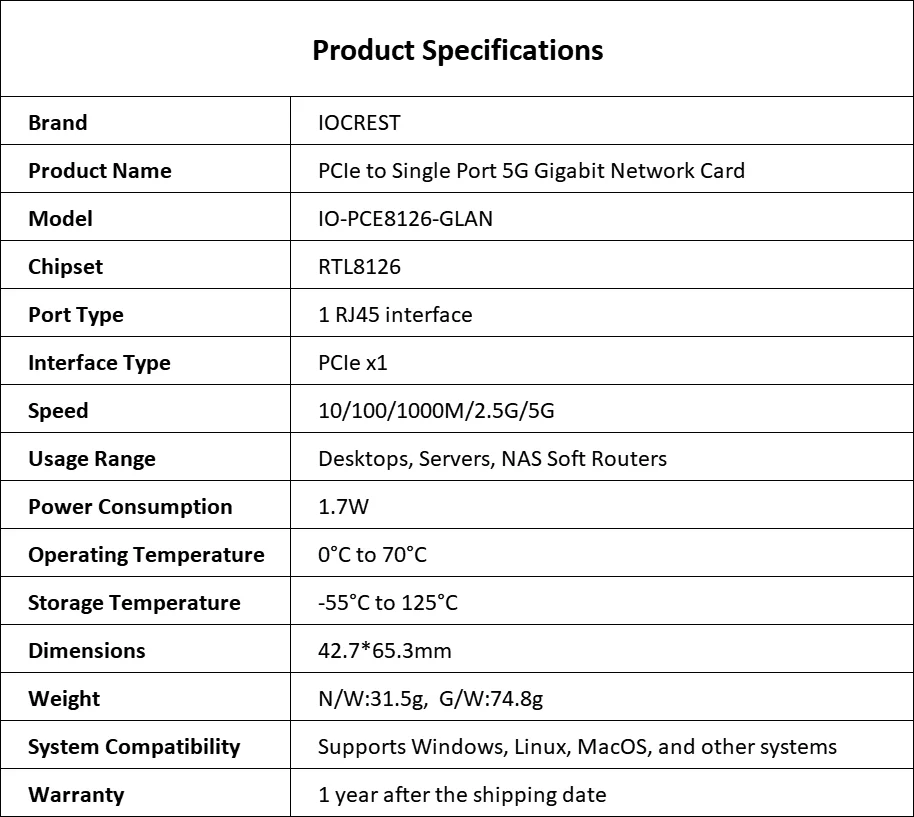

SPECIFICATIONS
Brand Name: IOCREST
Transmission Rate: 5000Mbps
Type: Wired
Kind: Internal

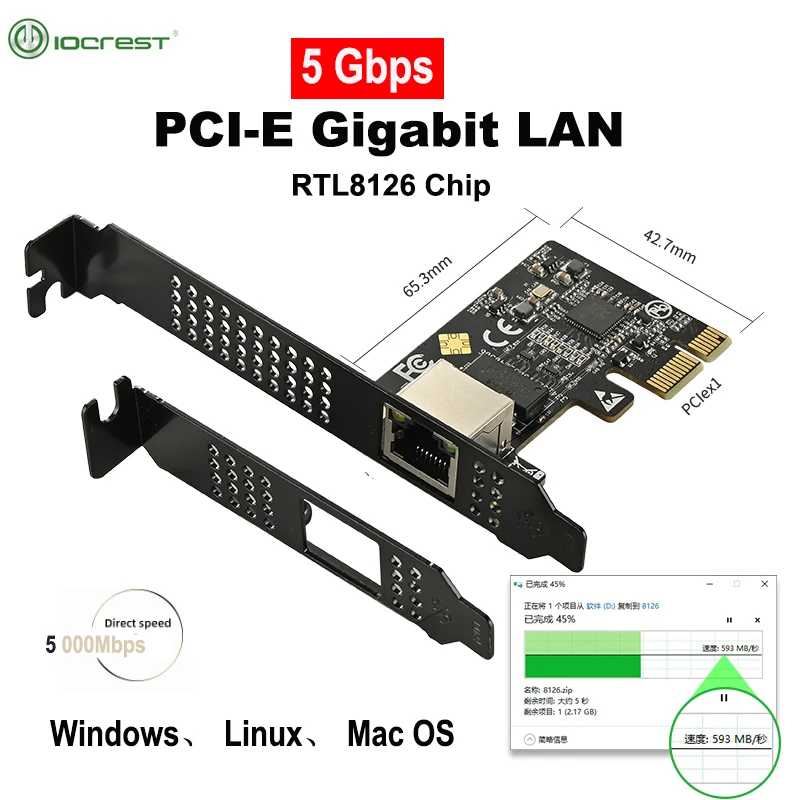

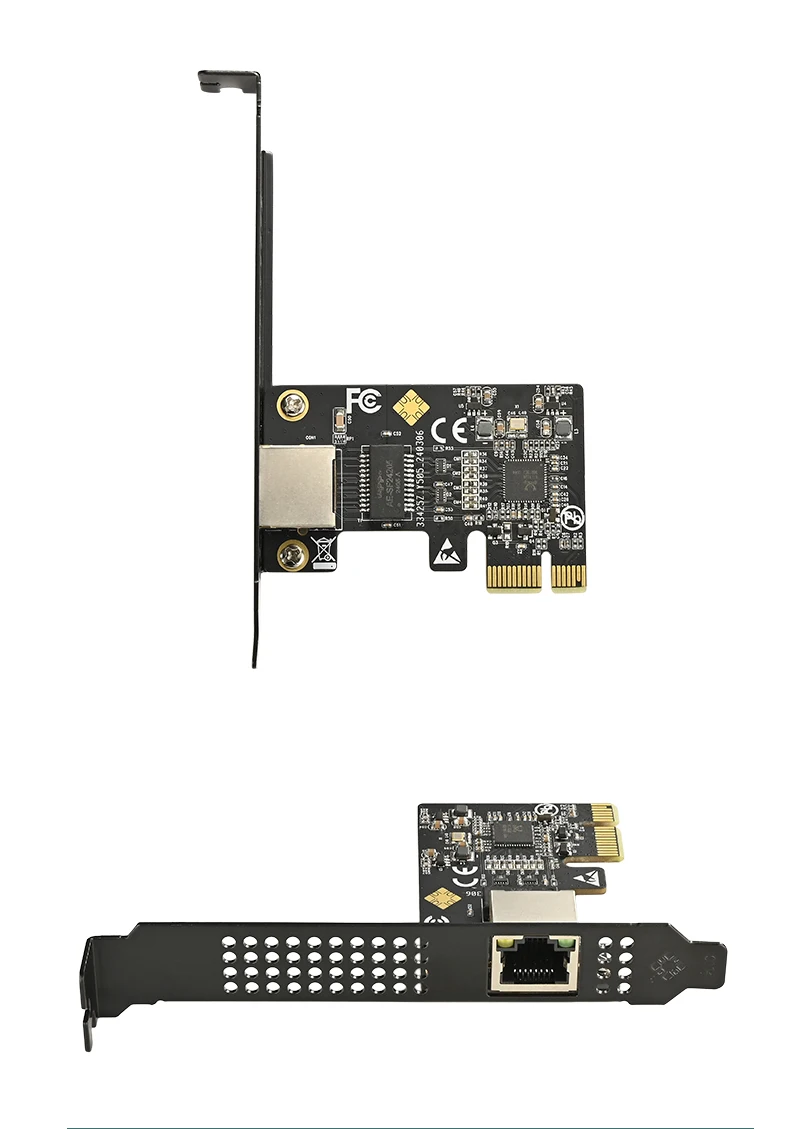

Origin: Mainland China IOCREST 5G PCI-E To RJ45 Network Card RTL8126 Chip Gigabit Ethernet PCI Express Network Card 10/100/2500/5000Mbps 1Gbps/5Gbps
Hign-concerned Chemical: None
Interface Type: PCI Express
Adapter Socket: RJ45
Applicable Network Type: Gigabit Ethernet
Lan Transmission Rate: 1000M Ethernet
Application: Desktop
Package: Yes
Certification: none
Model Number: IO-PCE8126-GLAN
Color: Black
Chipset: RTL8126
Port: 1 RJ45
Interface: PCIe

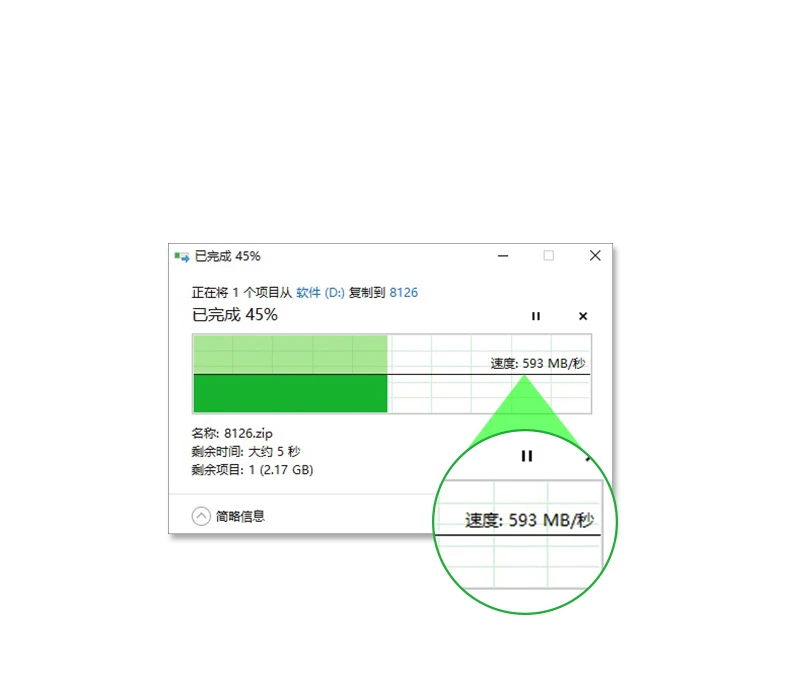

Speed: 5Gbps

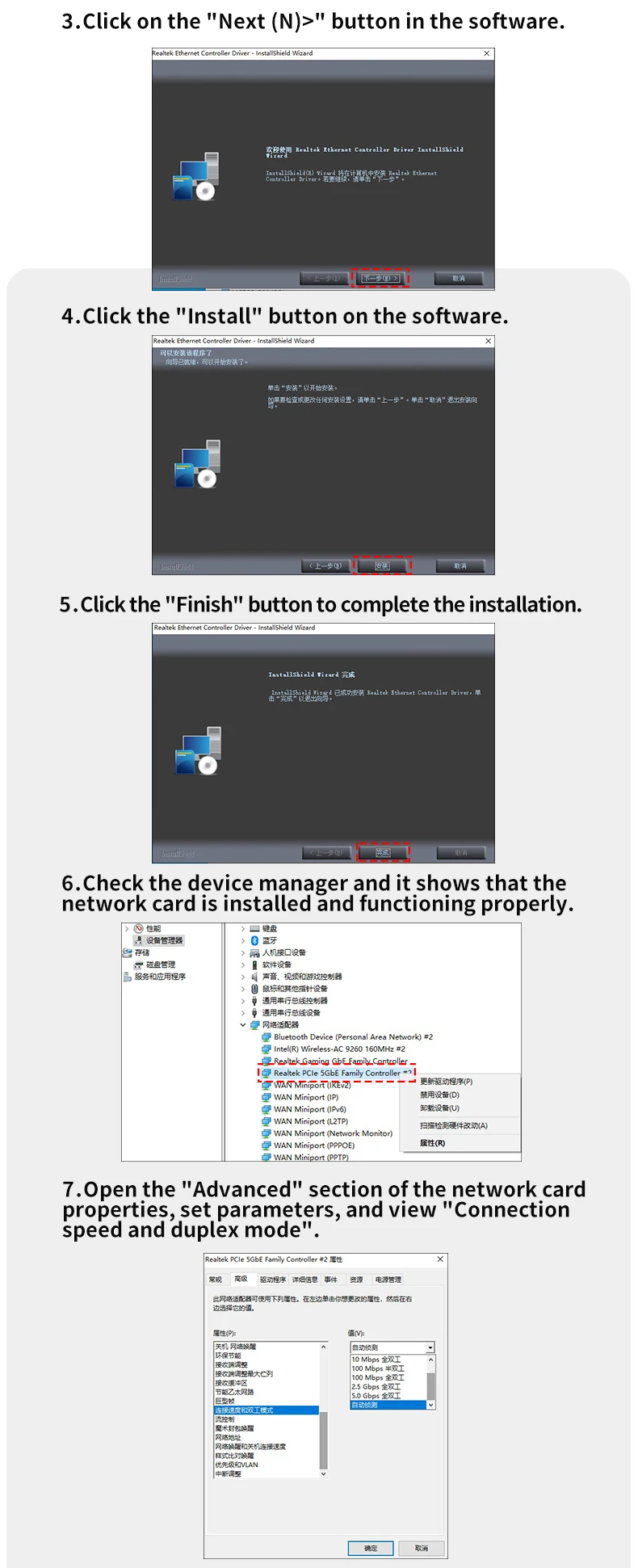

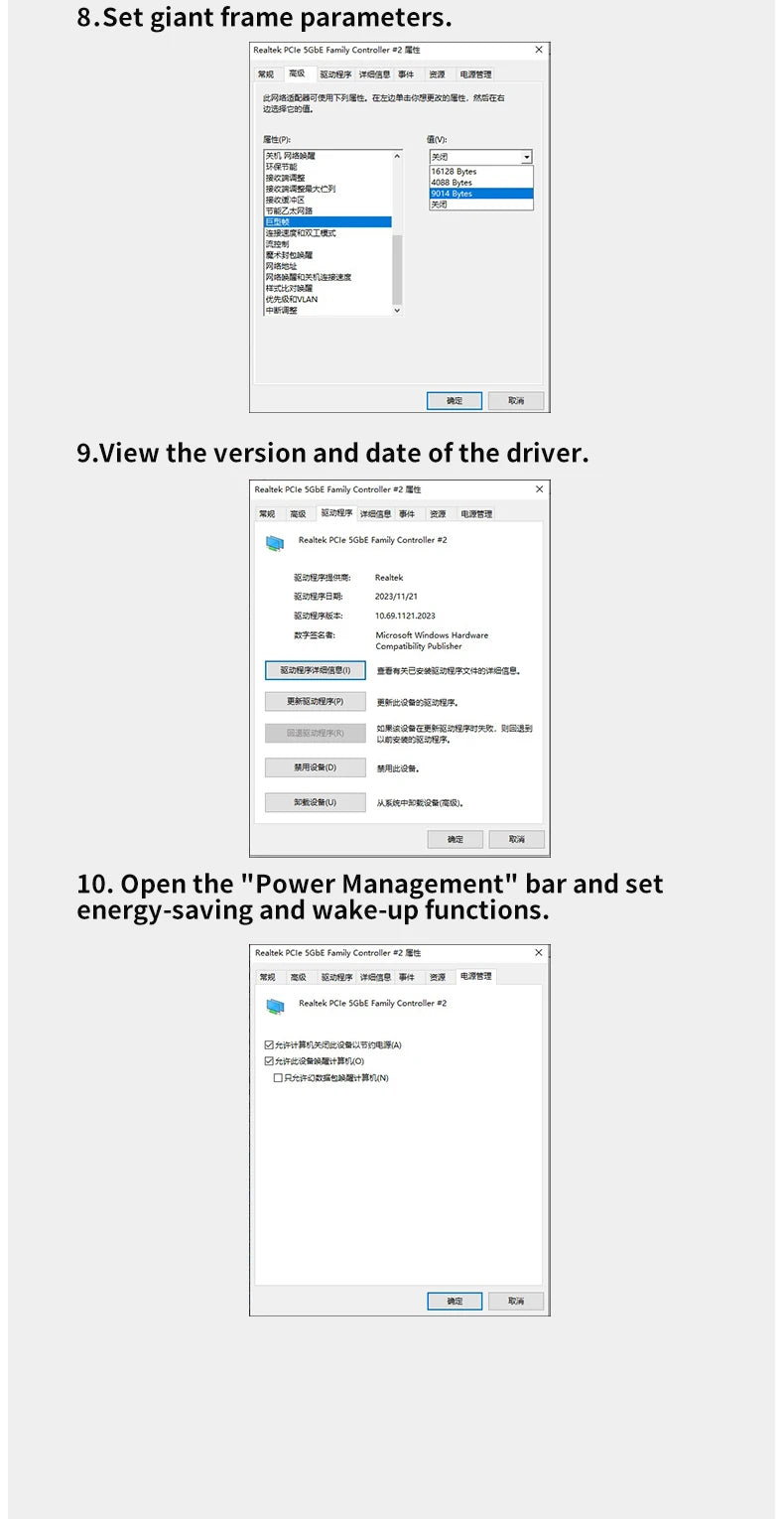

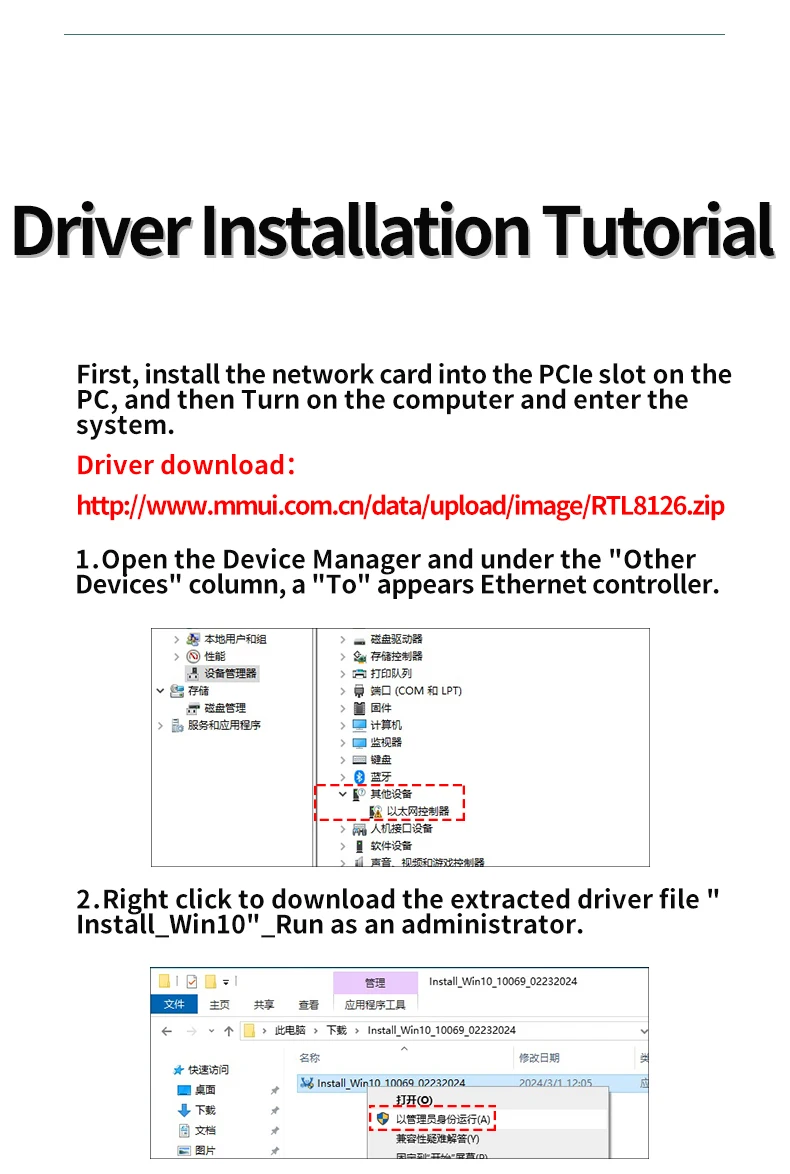

Driver Download
http://www.mmui.com.cn/data/upload/image/RTL8126.zip








Features
• Supports PCI Express revision 3.1
• Supports 1-Lane 2.5/5/8Gbps PCI Express Bus
• Supports 5G Lite (2.5G data rate) mode, 2.5G Lite (1G data rate) and GIGA Lite (500M data rate) mode
• Auto-Negotiation with Extended Next Page capability (XNP)
• Compatible with NBASE-T TM Alliance PHY Specification
• Supports pair swap/polarity/skew correction
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power down/link down power saving/PHY disable mode
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE802.3ab
• Supports IEEE 802.1Qav credit-based shaper algorithm
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.1ad Double VLAN
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.3bz
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports jumbo frame to 16K bytes
• Supports Wake-On-LAN (WoL)
• Operation Temperature :0°C to +70°C
• Storage Temperature-55°C to +125°C
System Requirements:
• Microsoft® Windows®, 10,11
• Linux Kernel, 3.10 and later releases
• MacOS 10.7 or Later

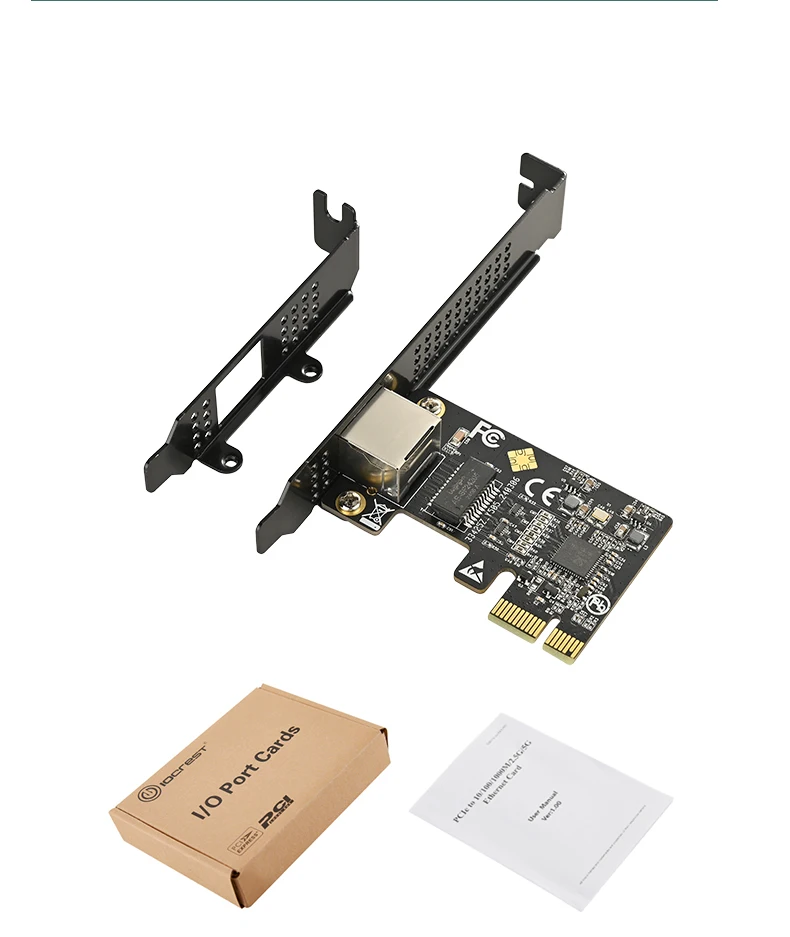

Package Contents
• 1 × PCI Express to 10/100/1000M/2.5G/5G Ethernet Controller Card
• 1 × User Manual
• 1 x Low Profile Bracket
Note: Contents may vary depending on country/market
