SPECIFICATIONS
Brand Name: vbpbsql
Hign-concerned Chemical: None
Type: Industrial Computer Accessories
Origin: US(Origin)
Model Number: 2060-771961-001
Certification: none
Products Status: Used
Choice: yes
semi_Choice: yes
USB 3.0 HDD PCB for Western Digital/Logic Board/Board Number:2060-771961-001 REV A , 2060-771961-001 REV B（Because there is no difference, the order did not note random delivery）,The Hard Disk Drive is not include.
The pcb number position :
Please Note:
1.These boards are used, the circuit board components not falling, the interface did not break.
2. All PCB have been tested before shipping. If the PCB is faulty during shipping, please inform us immediately after your received it.
3. If you are not sure the PCB is compatible with your HDD or not. Please contact us
Replacement the PCB only can solve the problem that is caused by the PCB faulty and HDD failures are not always caused by the PCB faulty. This PCB is not guaranteed to fix your HDD.
Main Controller IC: 88I9446-NDB2(Both IC is compatible with each other)
HDD Motor Combo IC: A21AV599 (Both IC is compatible with each other)
Board Number: 2060-771961-001(Please make sure your original PCB board number is same as our PCB)
Remarks: If your HDD firmware, date code and site code is different. You can swap the BIOS chip from original PCB to the replacement PCB, to make the replacement PCB compatible with your HDD.

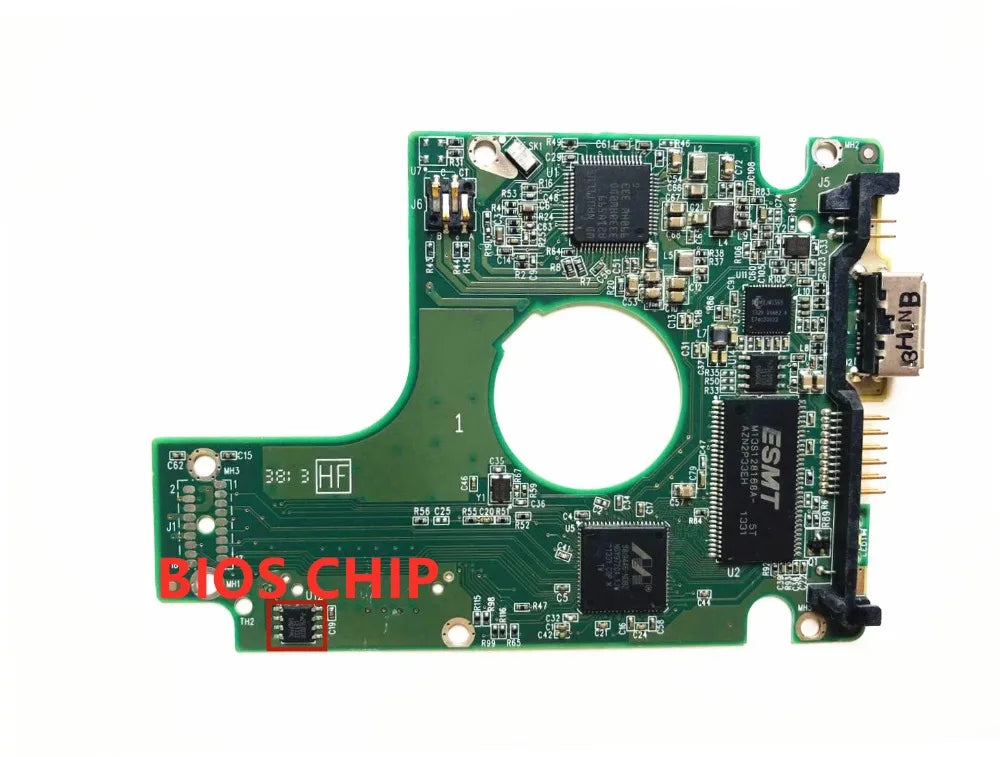

the BIOS chip position
Attention: Replacement the PCB only can solve the problem that is caused by the PCB faulty. If your HDD having the following problem.
Symptoms of failure:
The drive will power up normally (no ticking noises, errors etc) but will not be recognized by the computer
The drive will power up normally and be recognized correctly but will report a size of 0 bytes
The drive will power up but report SMART errors on boot
Replacement the PCB may not solve the above problem. These problem is caused by the HDD firmware corrupted.
