SPECIFICATIONS
Brand Name: gdstime
Model Number: GDA6010
Fan Speed: 3500 - 3800
Fan Size: other
Used For: case
Used For: Radiator
Voltage: 12V
Power Interface: 3pin/4pin
Power Interface: 2pin
Power Interface: USB
Power Interface: others
Blade Quantity: 3
Certification: CE
Certification: RoHS
Certification: weee
Origin: Mainland China
Package: Yes
Notice: The actual specifications are subject to the product details page.

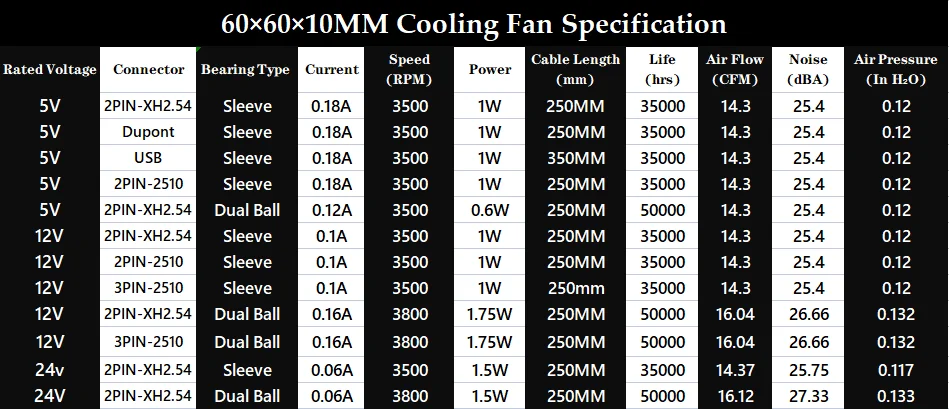

Parameters:

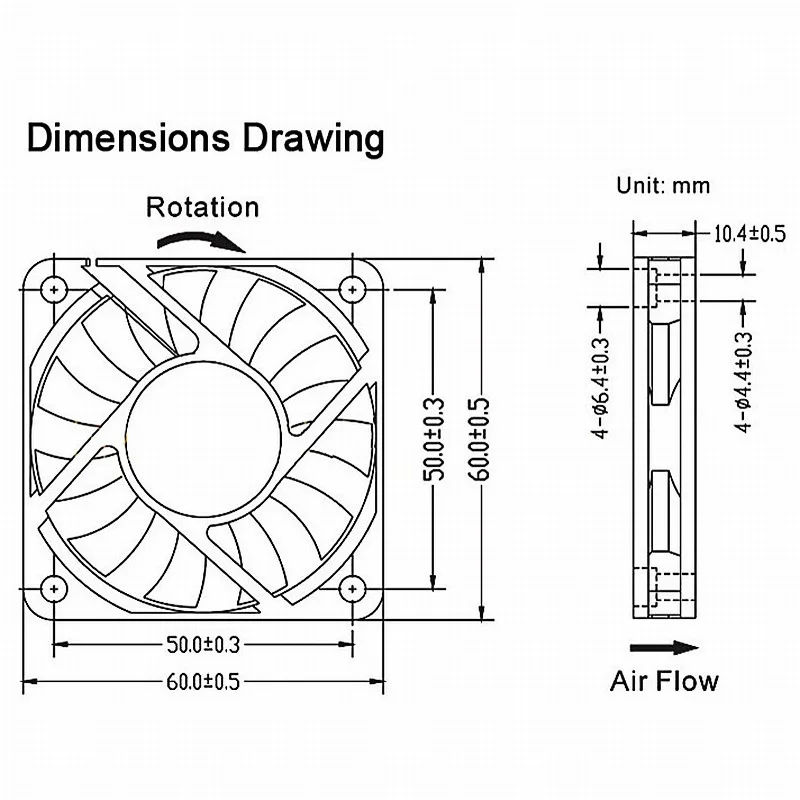

Dimensions: 60x60x10mm
Power Connector:2PIN/3PIN/Dupont/USB
Bearing Type: Sleeve Bearing&Dual ball
Rated Current: 0.06-0.18±10% Amp
Rated Voltage: DC 5V 12V 24V
Operational voltage:4-5.5V/7-13.5V/14-26V
Rated Speed: 3500~3800±10%rpm
Cable Length: approx25~ 35cm
Hole Distance:50.0±0.3mm
Fan life:35000hrs/50000hrs
Weight: 24g/pcs
Under the Operating voltage Start the fan, it's good for working state and has better protection for the motor
The real parameters please refer to the product details page.
Package includes:
2 Pcs 6010 Coolilng Fan
(Please choose the model and quantities you need,we will send the goods according to your choice)
Notice:
1.Transition: 1cm=10mm=0.39inch.
2.Compared to other bearings, double ball bearing fans produce slightly more noise, but last longer.
3.The current on the label will be updated from time to time, but keeping the other parameters the same.
4.We can customize according to customer's requirement, please contact us if you need other size of fan. Thanks.
